Several major improvements have been incorporated into the design and manufacture of the Cir-Kit Concepts' tapewire. The most significant is color coding of the copper foils. This new feature greatly simplifies the making of corners during the wiring process. Brass brads are installed only at the blue-to-blue and copper-to-copper overlap points, eliminating any possibility of short circuits at these locations. As great an idea as color coding may be, if the colors are too intense they will bleed through light wallpaper or paint and appear as unwanted ribbons of color. To ensure this doesn't happen, the one colored foil is made of a light pastel blue for easy masking.

Another problem that occurs with other, lesser quality brands of tapewire is "bubbling". This is a phenomenon that takes place once the tapewire is in place. As time passes, the transparent overlay begins to buckle causing ripples that eventually show through the wallpaper or paint coverings. Using a special manufacturing process, Cir-Kit Concepts has completely eliminated this problem. A tape run made today will appear as straight and true in a year as the day it was laid. The Cir-Kit Concepts' name is also embossed on the natural copper foil to identify it as the one and only Cir-Kit Concepts' tapewire product.

The main body of the tape is 5/8" wide with a total thickness of approximately .005". The copper foils will carry up to 5 amperes of continuous current.

The CK1007 Junction Splice serves as the juncture point for connecting the lead-in wire to a tape run. The imbedded nails, in addition to holding the connector in place, also establish electrical contact between the tapewire and the male pins on the lead-in wire plug. It is simply placed over the tape run and pounded in. Two sets of protruding teeth on the bottom also provide additional paths for current flow into the copper foils. The threaded screw aids in locking the junction splice in place and prevents accidental dislodgement during use. Mates with all CK1008 series of lead in wires.

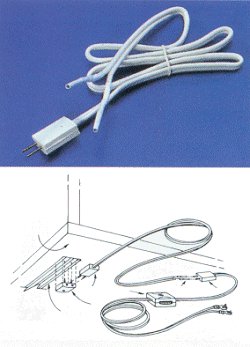

If you wish to install your Junction Splice in a less conspicuous location, such as under the dollhouse, use this extender for easy electrical access. Simply plug it into the Junction Splice and run the cord out for mating with the lead-in wire. The extender cord is 18" in length and is equipped with special, insulated wire sockets for connection to the lead wire plug. Instructions included.

• CK1008 Transformer Lead-in Wire. The CK1008 lead-in wire provides a transformer to dollhouse electrical interconnection and may be used with any screw-terminal type transformer. One end of the wire is equipped with a plug for connection to the CK1007 Junction Splice on the dollhouse and the other with spade lugs for connection to the transformer output terminals. Overall length, approximately 6 feet.
• CK1008-1 Transformer Lead-in Wire with Switch. This lead-in wire may be used for those installations requiring the convenience of total dollhouse on/off power control. (Eliminates need for unplugging lead-in wire from dollhouse to disconnect power.) Same in all other respects as CK1008.
• CK1008-2 Transformer Lead-in Wire with Switch and Fuse holder. Same as CK1008-1 but with added in-line fuse holder. Can be used for protection of any transformer with screw terminals. The fuse holder is a threaded assembly and accepts all Cir-Kit fuses.
• CK1008-3 Transformer Lead-in Wire with Switch and Spade Lugs. Use this lead-in wire in any application requiring spade lugs at both ends, i.e., transformers to terminal blocks. Contains an in-line switch and is identical in all other respects to CK1008-1.
